Popis

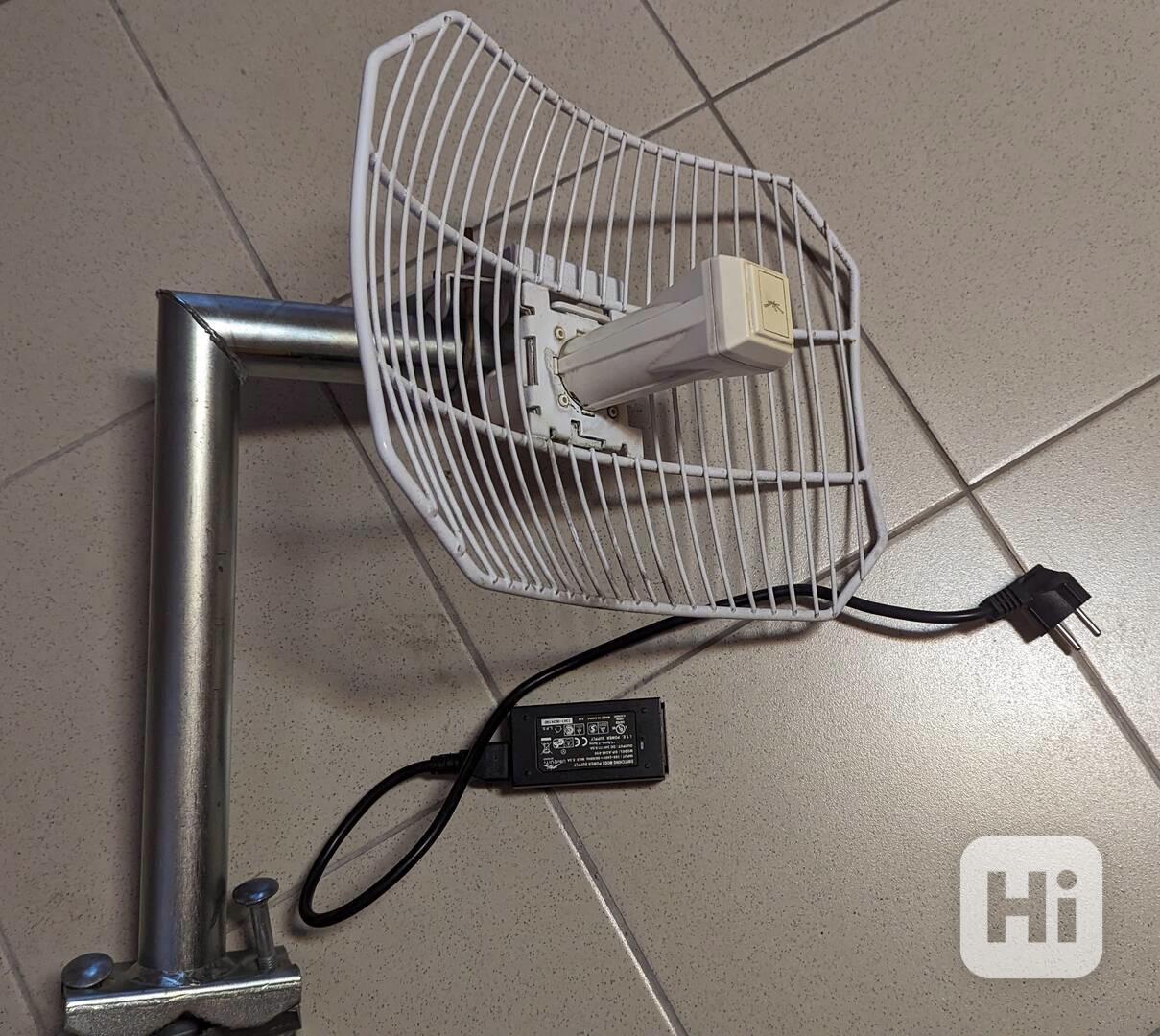

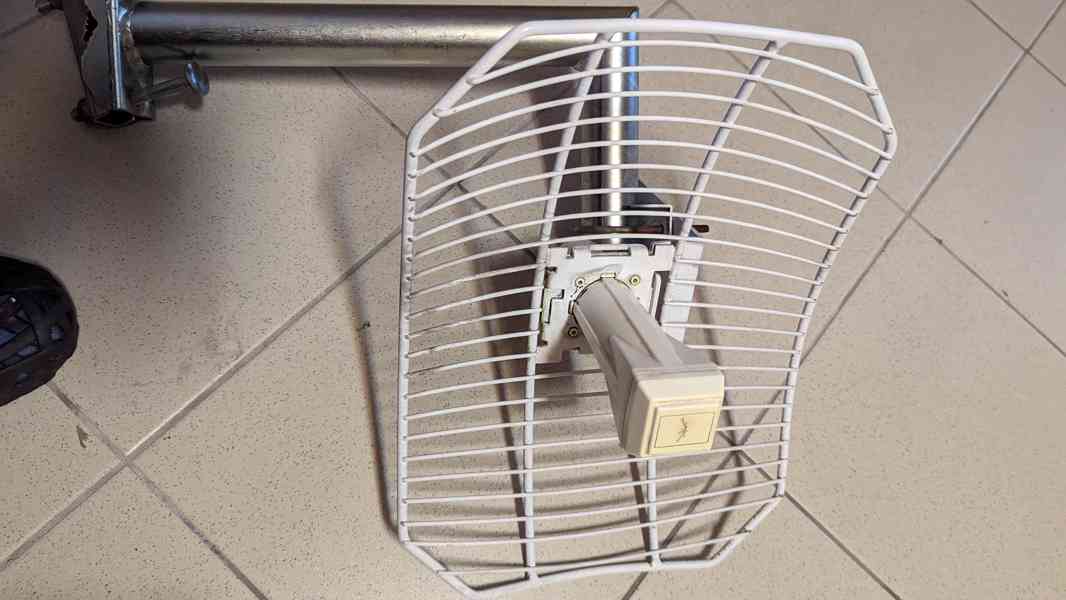

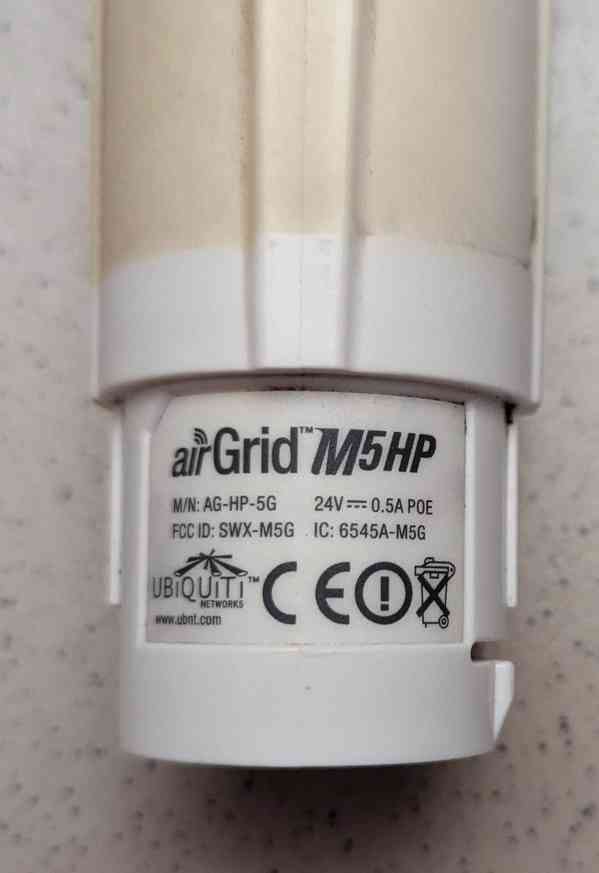

Prodám venkovní anténu Ubiquiti M5HP ( AG-HP - 5G) AirGrid HP, 5GHz

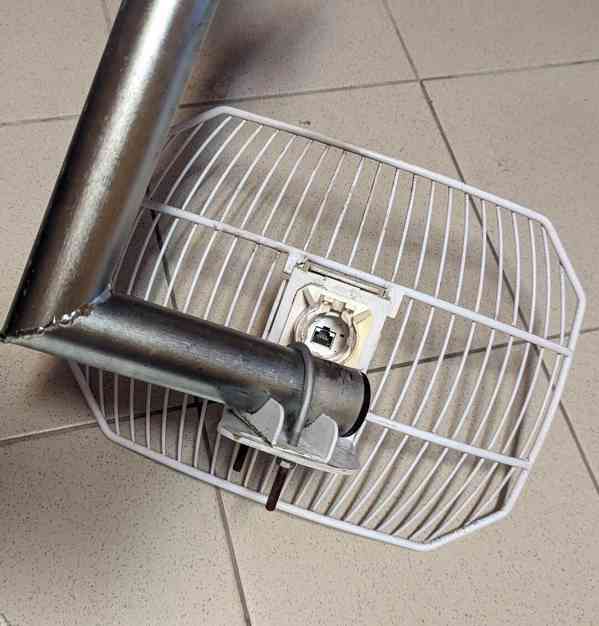

včetne napájecího zdroje a konzoly
Antenna Frequency Gain
Grid 5 GHz 28 dBi
Specifications
AG-HP-5G23
Dimensions 370 x 270 x 260 mm
Weight 1.45 kg
Networking Interface (1) 10/100 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Frequency 5725 – 5850 MHz
Gain 23 dBi
Output Power 25 dBm
Max. Power Consumption 3W

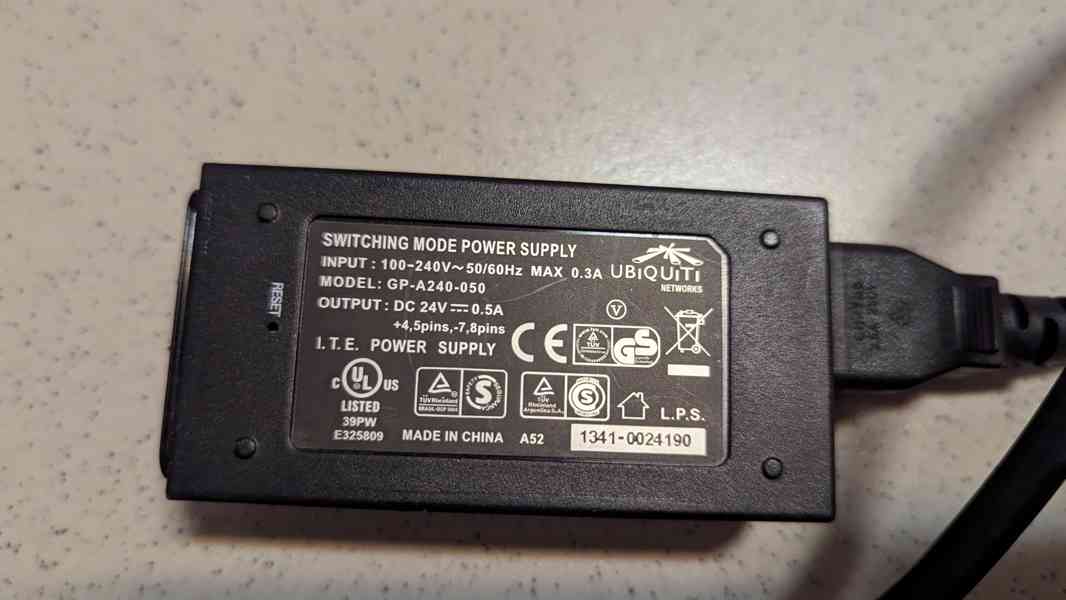

Power Supply 24V, 0.5A PoE Adapter (Included)
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8-)
Max. VSWR 1.5:1
Wind Survivability 200 km/h
(125 mph)
Wind Loading 34.7 N @ 200 km/h
(7.8 lbf @ 125 mph)
ETSI Specification EN 302 326 DN2
Shock and Vibration ETSI300-019-1.4
Operating Temperature -30 to 75° C
(-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
(Starý Hrozenkov)
