Popis
HP Intel Core i3-550
Procesor: Intel Core i3-550, 3,2GHz, LGA1156, 4MB Cache, 73W
Středně výkonný procesor řady Intel Core i3, 2 fyzická jádra s podporou HyperThreading (4 virtuální jádra), jádro Clarkdale, socket LGA1156, frekvence 3.20GHz, 4MB vyrovnávací paměti L3 cache, 32nm výrobní proces, integrovaný DDR3 paměťový řadič do 1333MHz, integrované grafické jádro Intel GMA HD (733MHz), TDP 73W, Virtualization Technology.
Základní deska: MSI MS.7613 LGA1156
Operační paměť: Kingston 4GB 1333MHz
Grafická karta: integrovaná v CPU, volný PCI-E 16x slot
Pevný disk: Seagate Barracuda 500GB SATAII
Optická mechanika: Asus DVD-RW
Case: HP Pavilion
Operační systém: Linux UBUNTU 11.04 64-bit (je možno dokoupit Windows 7 Home Premium 64bit za 2490,-)
Záruka 12 měsíců
MS-7613

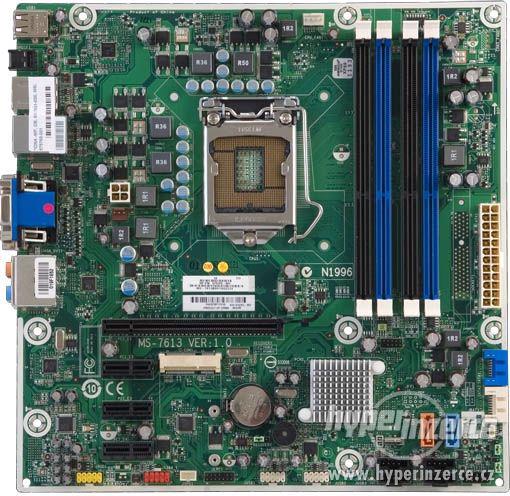

Figure 1: The MS-7613 (Iona-GL8E) motherboard
Motherboard description
Manufacturer's motherboard name: MS-7613
HP/Compaq name: Iona
Form Factor
Micro-ATX: 24.4 cm (9.6 in) x 24.4 cm (9.6 in)
Chipset
Intel H57 Express
Front-side bus speed
2.5 GT/s
Processor upgrade information
Motherboard supports the following processor upgrades:
Intel Core i7-8xx (Lynnfield core)
Intel Core i5-7xx (Lynnfield core)
Intel Core i5-6xx (Clarkdale core)
Intel Core i3-5xx (Clarkdale core) NOTE: Maximum processor core frequency
Memory upgrade information
Memory upgrade information:
Supports DDR3 DIMMs only
Dual channel memory architecture
Four DDR3 DIMM (240-pin) sockets
DIMM types:
PC3-10600 (DDR3-1333)
PC3-8500 (DDR3-1066)
Non-ECC memory only, unbuffered
Supports up to 16 GB on 64-bit PCs
Maximum memory only if using 4GB DDR3 DIMM modules. NOTE: 32-bit PCs can only address less than 4.0 GB of memory. This motherboard is not planned for use with a 32-bit OS.
Video
Integrated Intel H57
*Integrated video is not available if a graphics card is installed.
Integrated graphics using Intel H57 chipset (when compatible CPU is installed)
Intel HD Graphics
Audio
Integrated Realtek ALC888S Audio
Integrated High Definition audio
Audio CODEC: ALC888S
6-channel high-definition audio
AC97: no
Networking
LAN: Gigabit 10-Base-GT
Technology: Realtek RTL8111DL 10/100 Mbps
Data transfer speeds: up to 10/100/1000 Mbps
Transmission standards: Gigabit 10-Base-GT Ethernet
Expansion Slots
One PCI Express x16 slot (for graphics card support)
Three PCI Express x1 slots
One PCI Express x1 minicard socket
I/O Ports
Back I/O ports
Figure 2: Back I/O panel
1 - USB ports: 2
2 - S/PDIF optical output port
3 - IEEE 1394 port
4 - RJ45 LAN
5 - Video Graphics Adapter port
6 - Center/Subwoofer port (yellow orange)
7 - Rear Speaker Out port (black)
8 - Side Speaker Out port (gray)
9 - Line In port (light blue)
10 - Line Out port (lime)
11 - Microphone port (pink)
12 - DVI port
13 - USB ports: 4
Internal Connectors
One CPU fan connector
Four DIMM sockets
One 24-pin ATX power connector
One 4-pin ATX power connector
Four SATA connectors
Six USB headers, supporting 8 USB connections
WLAN card LED connector
Clear CMOS jumper
Clear BIOS password jumper
Front panel connector
SPDIF out connector
ROM Recovery
1394 connector
Speaker
Front panel audio connector
One PCI-E x16 connector
Three PCI-E x1 connectors
One PCI-E Mini-Card connector
One PC fan connector
Motherboard layout
Figure 3: layout
Figure 4: Back I/O panel
1 - USB 2.0 ports 1 and 2.
2 - S/PDIF optical output port. This port connects an external audio device.
3 - IEEE 1394 port. This 6-pin IEEE 1394 port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.
4 - LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub.
5 - Video Graphics Adapter port. This port is for a VGA monitor or other VGA-compatible devices.
6 - Center/Subwoofer port (yellow orange). This port connects the center/subwoofer speakers.
7 - Rear Speaker Out port (black). This port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration.
8 - Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration.
9 - Line In port (light blue). This port connects a tape, CD, DVD player, or other audio sources.
10 - Line Out port (lime). This port connects to headphones or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speakers Out.
11 - Microphone port (pink). This port connects a microphone.
12 - DVI port. DVI is a standard for connecting computers to digital monitors and provides a pure digital video signal to a digital flat-panel display or projector.
13 - USB 2.0 ports 3, 4, 5, and 6. These four 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
