Popis
OBSAH BALENÍ:

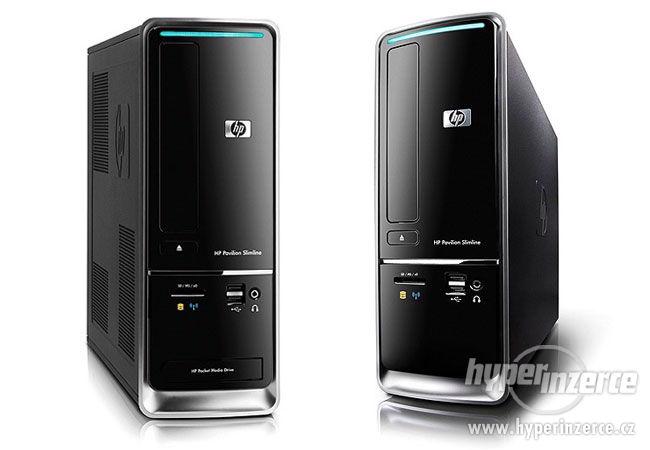

Case Hp Pavilion Slimline, zdroj HP-D2201C0 220W, SATA kabel
Základní deska: MSI MS-7613

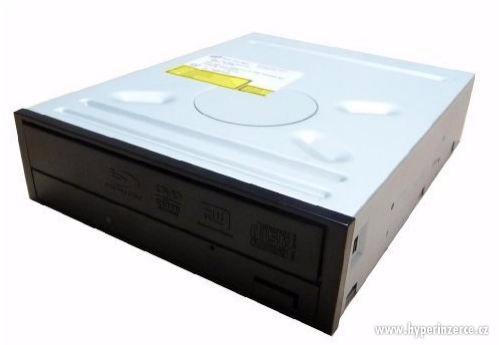

Optická mechanika: Blu-Ray combo HP DH-8E2L BD/DVD-RW
Zbývá doplnit:
Procesor: Intel Core i3, i5, i7 socket 1156
Operační paměti DDR3
Pevný disk S-ATA
rozměry šířka: 39cm x výška: 30cm x hloubka: 10,5cm
MS-7613

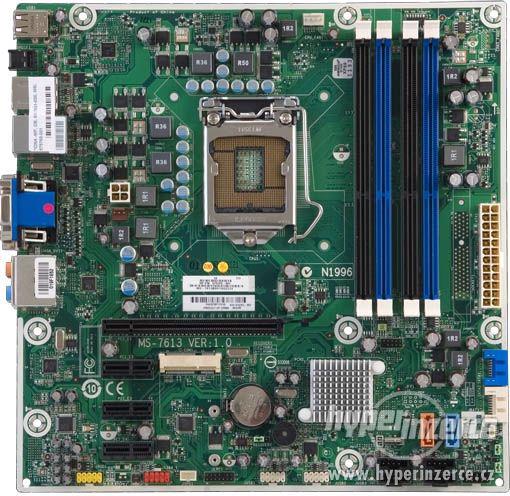

Figure 1: The MS-7613 (Iona-GL8E) motherboard
Motherboard description
Manufacturer's motherboard name: MS-7613
HP/Compaq name: Iona
Form Factor
Micro-ATX: 24.4 cm (9.6 in) x 24.4 cm (9.6 in)
Chipset
Intel H57 Express
Front-side bus speed
2.5 GT/s
Processor upgrade information
Motherboard supports the following processor upgrades:
Intel Core i7-8xx (Lynnfield core)
Intel Core i5-7xx (Lynnfield core)
Intel Core i5-6xx (Clarkdale core)
Intel Core i3-5xx (Clarkdale core) NOTE: Maximum processor core frequency
Memory upgrade information
Memory upgrade information:
Supports DDR3 DIMMs only
Dual channel memory architecture
Four DDR3 DIMM (240-pin) sockets
DIMM types:
PC3-10600 (DDR3-1333)
PC3-8500 (DDR3-1066)
Non-ECC memory only, unbuffered
Supports up to 16 GB on 64-bit PCs
Maximum memory only if using 4GB DDR3 DIMM modules. NOTE: 32-bit PCs can only address less than 4.0 GB of memory. This motherboard is not planned for use with a 32-bit OS.
Video
Integrated Intel H57
*Integrated video is not available if a graphics card is installed.
Integrated graphics using Intel H57 chipset (when compatible CPU is installed)
Intel HD Graphics
Audio
Integrated Realtek ALC888S Audio
Integrated High Definition audio
Audio CODEC: ALC888S
6-channel high-definition audio
AC97: no
Networking
LAN: Gigabit 10-Base-GT
Technology: Realtek RTL8111DL 10/100 Mbps
Data transfer speeds: up to 10/100/1000 Mbps
Transmission standards: Gigabit 10-Base-GT Ethernet
Expansion Slots
One PCI Express x16 slot (for graphics card support)
Three PCI Express x1 slots (for cards such as network, sound, or tv-tuner)
One PCI Express x1 minicard socket
I/O Ports
Back I/O ports
Figure 2: Back I/O panel
1 - USB ports: 2
2 - S/PDIF optical output port
3 - IEEE 1394 port
4 - RJ45 LAN
5 - Video Graphics Adapter port
6 - Center/Subwoofer port (yellow orange)
7 - Rear Speaker Out port (black)
8 - Side Speaker Out port (gray)
9 - Line In port (light blue)
10 - Line Out port (lime)
11 - Microphone port (pink)
12 - DVI port
13 - USB ports: 4
Internal Connectors
One CPU fan connector
Four DIMM sockets
One 24-pin ATX power connector
One 4-pin ATX power connector
Four SATA connectors
Six USB headers, supporting 8 USB connections
WLAN card LED connector
Clear CMOS jumper
Clear BIOS password jumper
Front panel connector
SPDIF out connector
ROM Recovery
1394 connector
Speaker
Front panel audio connector
One PCI-E x16 connector
Three PCI-E x1 connectors
One PCI-E Mini-Card connector
One PC fan connector
Motherboard layout
Figure 3: layout
Figure 4: Back I/O panel
1 - USB 2.0 ports 1 and 2.
2 - S/PDIF optical output port. This port connects an external audio device.
3 - IEEE 1394 port. This 6-pin IEEE 1394 port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.
4 - LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub.
5 - Video Graphics Adapter port. This port is for a VGA monitor or other VGA-compatible devices.
6 - Center/Subwoofer port (yellow orange). This port connects the center/subwoofer speakers.
7 - Rear Speaker Out port (black). This port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration.
8 - Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration.
9 - Line In port (light blue). This port connects a tape, CD, DVD player, or other audio sources.
10 - Line Out port (lime). This port connects to headphones or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speakers Out.
11 - Microphone port (pink). This port connects a microphone.
12 - DVI port. DVI is a standard for connecting computers to digital monitors and provides a pure digital video signal to a digital flat-panel display or projector.
13 - USB 2.0 ports 3, 4, 5, and 6. These four 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
Záruka 6 měsíců
